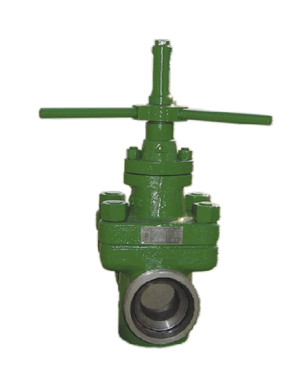

Hard seal mud gate valve
Features:
The hard seal mud gate valve is the patented product of our company and its patent No. is ZL 01 2 33378.6. The product is used mainly for drilling fluid manifolds, petrochemical pipelines and other industrial high pressure pipelines.
Technical Parameter:
|
Model |
Z23Y-35-DN50 |
Z23Y-35-DN65 |
Z23Y-35-DN80 |
Z23Y-35-DN100 |
|
Working Pressure (MPa) |
35 |
|
Drift diameter (mm) |
Φ50(2") |
Φ63(2-1/2") |
Φ76(3") |
Φ94(4") |
|
Working media |
Mud |
|
Connection type |
Union |
|
Joint connection size (D) |
Tr120×6 |
Tr130×6 |
Tr150×6 |
Tr180×8 |
|
Structure length (L) |
205 |
235 |
270 |
330 |
