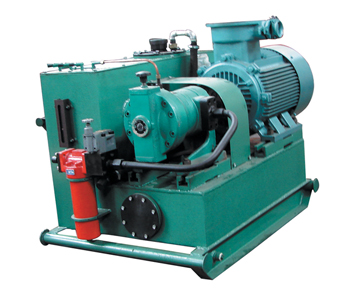

YZB-160 Hydraulic Power Station
YZB-160 Explosion-proof Hydraulic Power Station is a type of hydraulic equipment which provides power tongs and other well serving equipments with hydraulic power source. It has the features of convenient adjusting of pressure and a wide range of pressure regulation, convenient operation and better compatibility, etc.
|
Model |
YZB-160 |
YZB-160Ⅱ |
|
Rated Flow |
L/min |
160 |
160 |
|
gpm |
42 |
42 |
|
Rated
Pressure |
MPa |
16 |
20 |
|
psi |
2320 |
2900 |
|
Actual
Volume |
L |
588 |
600 |
|
gal |
155 |
158 |
|
Motor
Power |
kW |
37 |
45 |
|
hp |
50 |
60 |
|
External
Dimensions |
mm |
1720×1090×1255 |
2150×1300×1650 |
|
in |
68×43×49 |
84×51×65 |
|
Weight |
kg |
1300 |
2400 |
|
lb |
2866 |
5280 |
|
Joint
Dimensions |
Ball Joint of Outlet |
M30×1.5(or customizing) |
M30×1.5(or customizing) |
|
Joint of Oil-return |
M42×2(or customizing) |
M42×2(or customizing) |
